Mega-Swivel Coupler
Silver
Part Number:
MLSM
Mega-Coupler, Swivel
Black Anodized
Part Number MLSB
Mega-Coupler, Swivel
Steel Wing Nut
Black Anodized
Part Number:
MLSB-SW
Mega-Coupler, Swivel
Silver
Part Number:
MLSM-SW
Roll Pin
Part Number:
PS.219X2-ZP
Mega-Swivel Coupler-XL
Silver
Part Number:
MLSM-XL
Hardware Kit for combining two standard hex Mega-Couplers into a Swivel Coupler.
Hardware is easily removable to change the swivel back into two Mega-Couplers.
Part Number:
MLSM-XL-RKIT

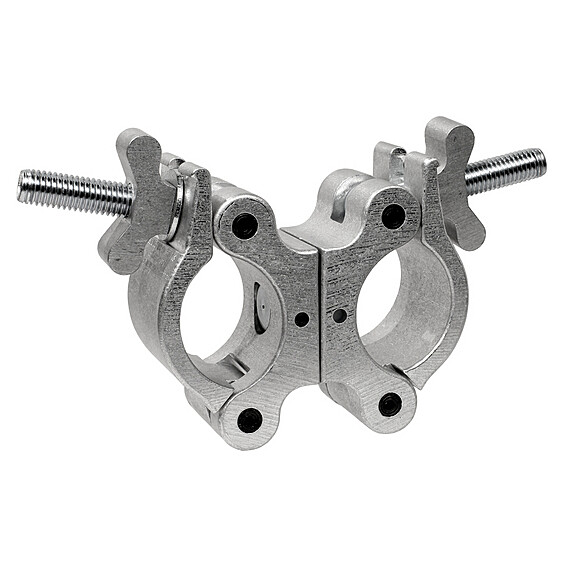

The Swivel Coupler will fasten from 1-1/4" pipe (1.660" OD) to 2.050" OD truss tube. The Swivel-Coupler has wide wing nuts for fastening the clamp to the pipe or tube.
The Swivel Coupler can be locked into a 90 degree fixed coupler by adding an optional 7/32″ × 2″ spirol pin.
The Swivel Coupler is available with a Steel Wingnut(SW) or Stainless Steel Hardware (SS) option.
- Minimum Size
1.25" pipe, 1.66" OD pipe
- Maximum Size
1.5" pipe, 1.90" OD pipe, 2" OD truss tube
- Working Load Limit
1,100 Pounds 500kg
- Weight
2.2 Pounds
- Case Quantities
12
